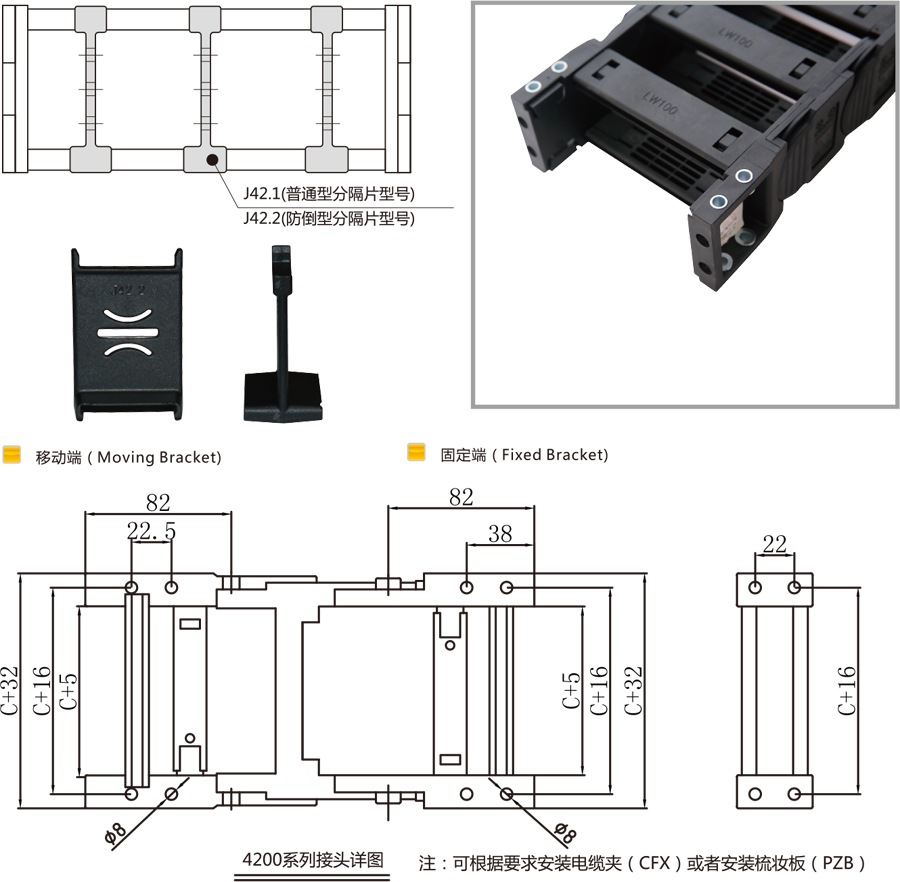

拖链型号 | 固定式接头型号 | 活动式接头型号 | 拖链内宽C[mm] |
J4200S.043 | J4200S.043.12 | J4200S.043.34 | 43 |
J4200S.050 | J4200S.050.12 | J4200S.050.34 | 50 |
J4200S.068 | J4200S.068.12 | J4200S.068.34 | 68 |
J4200S.075 | J4200S.075.12 | J4200S.075.34 | 75 |
J4200S.100 | J4200S.100.12 | J4200S.100.34 | 100 |
J4200S.125 | J4200S.125.12 | J4200S.125.34 | 125 |
J4200S.137 | J4200S.137.12 | J4200S.137.34 | 137 |
J4200S.150 | J4200S.150.12 | J4200S.150.34 | 150 |
J4200S.175 | J4200S.175.12 | J4200S.175.34 | 175 |
J4200S.187 | J4200S.187.12 | J4200S.187.34 | 187 |
J4200S.200 | J4200S.200.12 | J4200S.200.34 | 200 |
J4200S.225 | J4200S.225.12 | J4200S.225.34 | 225 |
J4200S.250 | J4200S.250.12 | J4200S.250.34 | 250 |
J4200S.300 | J4200S.300.12 | J4200S.300.34 | 300 |

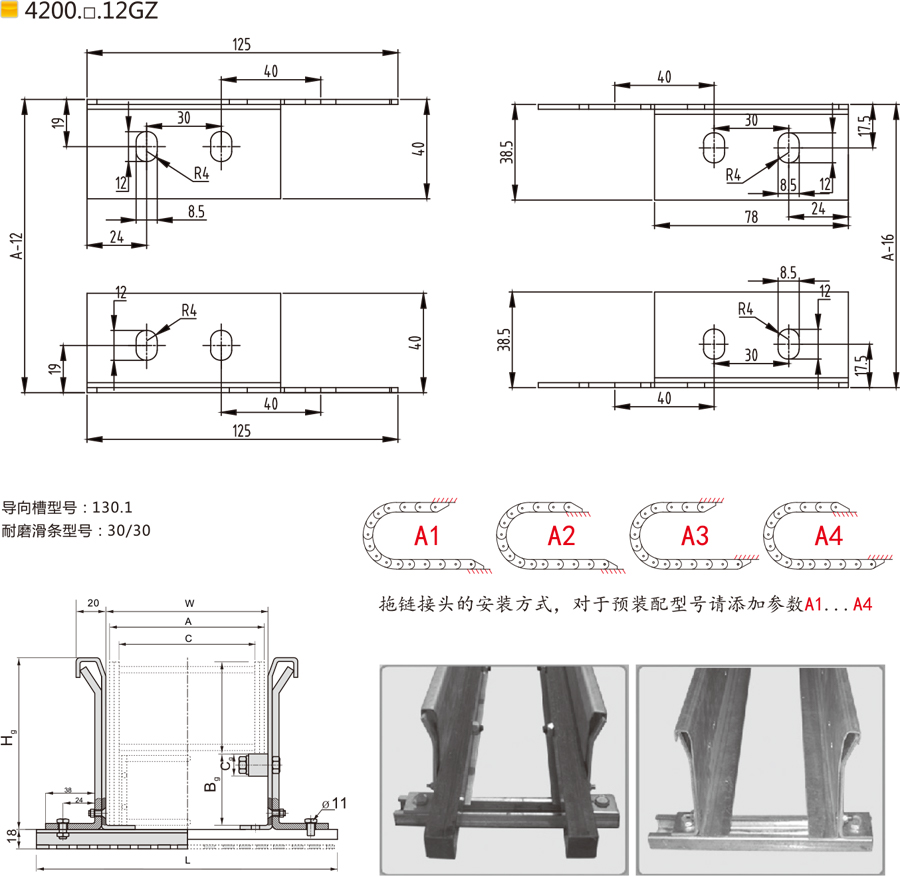

参数表[mm]
Bg | Cg | Hg | W | L |
64 | 30 | 130.5 | A+ 8(A为拖链外宽) | =W+125 |
◆ 用于高负载 ◆ 室内及室外应用，抗辐射，耐老化 ◆ 特别适用于水平架空和中长行程 ◆ 适用于输送物流装置、机床及焊接领域、工程机械、加工设备、包装机械、室内外起重机 ◆ J4200S系列用于输送小车，行程55M ◆ 拖链型号:J4200.125.150.BK及附属电缆、导向槽及配件 |  |
