拖链型号 | 固定式接头型号 | 活动式接头型号 | 拖链内宽C[mm] |
J3500.043 | J3500.043.12 | J3500.043.34 | 43 |
J3500.050 | J3500.050.12 | J3500.050.34 | 50 |
J3500.068 | J3500.068.12 | J3500.068.34 | 68 |
J3500.075 | J3500.075.12 | J3500.075.34 | 75 |
J3500.100 | J3500.100.12 | J3500.100.34 | 100 |
J3500.125 | J3500.125.12 | J3500.125.34 | 125 |
J3500.137 | J3500.137.12 | J3500.137.34 | 137 |
J3500.150 | J3500.150.12 | J3500.150.34 | 150 |
J3500.175 | J3500.175.12 | J3500.175.34 | 175 |
J3500.187 | J3500.187.12 | J3500.187.34 | 187 |
J3500.200 | J3500.200.12 | J3500.200.34 | 200 |
J3500.225 | J3500.225.12 | J3500.225.34 | 225 |
J3500.250 | J3500.250.12 | J3500.250.34 | 250 |
J3500.300 | J3500.300.12 | J3500.300.34 | 300 |

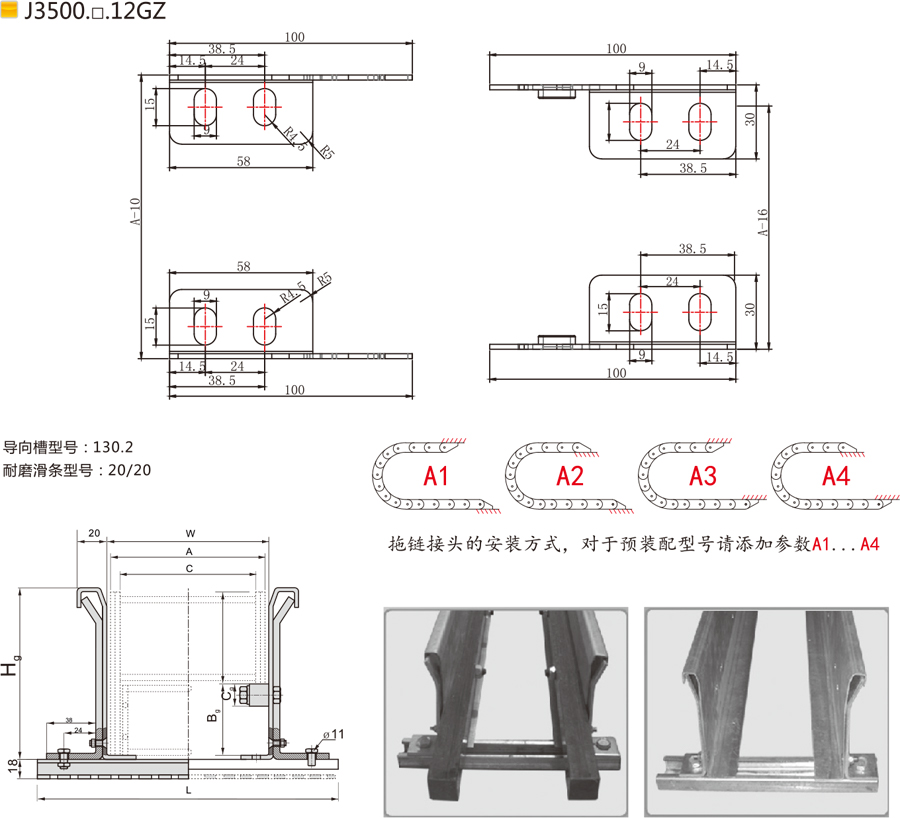

参数表[mm]
Bg | Cg | Hg | W | L |
54 | 20 | 130.5 | A+ 8(A为拖链外宽) | =W+125 |

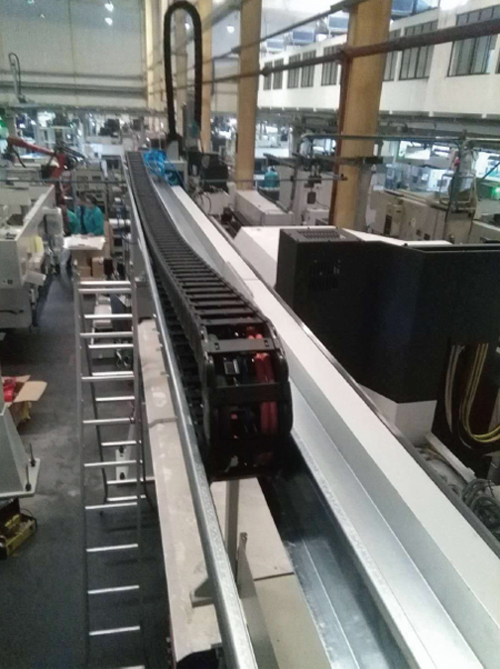

◆ 用于中高负载 ◆ 室内及室外应用，抗辐射，耐老化 ◆ 特别适用于水平架空和中长行程50M以上长行程场合 ◆ 适用于输送物流装置、加工设备、包装机械、机床及焊接领域、工程机械、室内起重机 ◆ J3500BK系列用于输送小车，行程<30M ◆ 拖链型号:J3500.075.125.BK及附属导向槽配件 |  |
