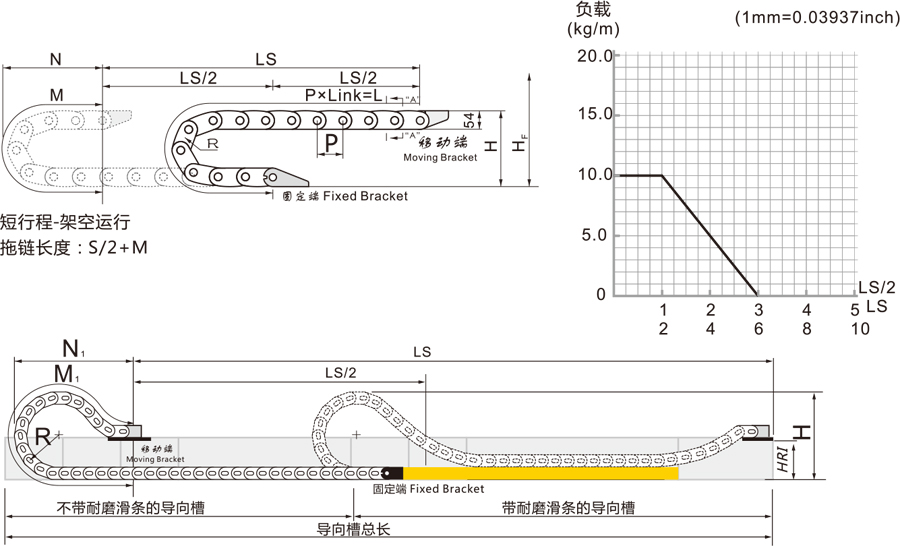

◆ 长度计算
◆ 长行程-滑行运行
拖链长度:S/2+M₁
速度/加速度 | max.10[m/s]/max.10[m/s²] |
架空滑行速度/加速度 | max.5[m/s]/max.5 [m/s²] |
材料允许温度 | -40°C ~+130°C |
安全安装高度HF (极限安装高度) | H+ 40mm |
节距P =56mm | 每米18节 |
R mm | HR1 mm | H mm | N mm | M mm | N1 mm | M1 mm |
075 | 204 | 204 | 158 | 350 | 158 | 350 |
100 | 168 | 254 | 183 | 430 | 370 | 616 |
125 | 168 | 304 | 208 | 505 | 470 | 784 |
150 | 168 | 354 | 233 | 585 | 500 | 896 |
175 | 168 | 404 | 258 | 665 | 655 | 1120 |
200 | 168 | 454 | 283 | 745 | 770 | 1288 |
250 | 168 | 554 | 333 | 900 | 930 | 1568 |
300 | 168 | 654 | 383 | 1110 | 1100 | 1960 |

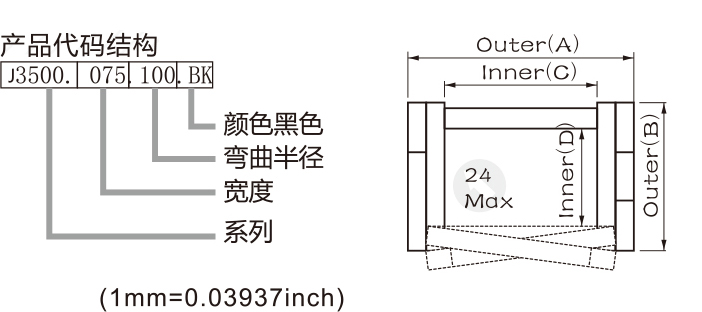

◆ J3500系列拖链-横杆沿外半径方向可打开
产品代码 | A [mm] | B [mm] | C [mm] | D [mm] | R弯曲半径 [mm] | 近似重量 [Kg/m] | |
J3500.043.□.BK. | 68 | 54 | 43 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 1.71 | |
J3500.050.□.BK. | 75 | 54 | 50 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 1.81 | |
J3500.068.□.BK. | 93 | 54 | 68 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 1.92 | |
J3500.075.□.BK. | 100 | 54 | 75 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 2.01 | |
J3500.100.□.BK. | 125 | 54 | 100 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 2.19 | |
J3500.125.□.BK. | 150 | 54 | 125 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 2.36 | |
J3500.137.□.BK. | 160 | 54 | 137 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 2.48 | |
J3500.150.□.BK. | 175 | 54 | 150 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 2.50 | |
J3500.175.□.BK. | 200 | 54 | 175 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 2.64 | |
J3500.187.□.BK. | 212 | 54 | 187 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 2.76 | |
J3500.200.□.BK. | 225 | 54 | 200 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 2.92 | |
J3500.225.□.BK. | 250 | 54 | 225 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 3.13 | |
J3500.250.□.BK. | 275 | 54 | 250 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 3.35 | |
J3500.300.□.BK. | 325 | 54 | 300 | 35 | [075] [100] [125] [150] [175] [200] [250] [300] | 3.19 |
